AOOSTAR AG01 OCuLink GPU Dock
- AOOSTAR AG01 OCuLink GPU Dock.
- Customized Huntkey 400W power supply.
- Support Oculink, TGX interface.
High Quality:

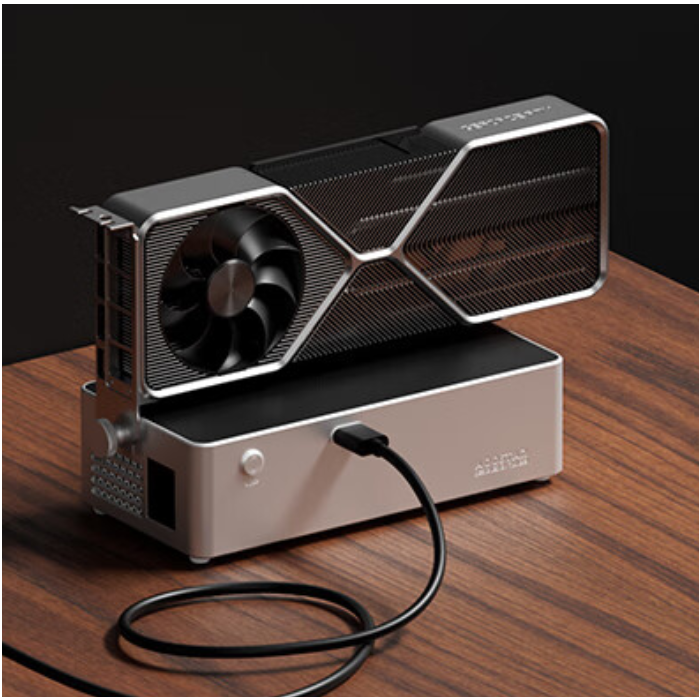

AOOSTAR AG01 GPU Dock adopts an open metal body design, an aluminum alloy profile middle frame, and measures 22.5 x 11 x 6cm, and the graphics card is not limited in length.
400W Power:
AOOSTAR AG01 has a built-in customized Huntkey 400W power supply, which can realize the power supply one-line communication and comes with a hub design.
Compatible with
It is recommended to use RTX 4070 and RX 7700XT and below, AOOSTAR AG01 is compatible with AMD/Intel/NVIDIA graphics cards with power consumption below 250W.
OCuLink & TGX Ports
The OCuLink interface provides 64Gbps of effective bandwidth for PCIe 4.0 x4 lanes, and the dock is hot-swappable for the TGX interface of the 2024 Lenovo ThinkBook 14+ / 16+ Core Edition laptops.
Specification:
Power rating: 400W
Interface configuration: 1 OCuLink interface, 2 x 8-pin graphics card power connectors
Device support: Built-in PCIE x16 interface, the maximum power consumption of the graphics card supports 250W, which basically meets the needs of most existing graphics cards
Power input: AC 220V~ 50/60Hz
OS: Support Mac & Windows (Win 11 22h2 or higher recommended)
Size: 22.5CM*11CM*6CM
* The GPU is not included.
