BEELINK GTR7 7840HS 1TB
GTR7 offers excellent performance. The Max Turbo frequency can reach 5.1GHz. Turbo TDP can reach 65W.
Magnetic Power Supply 4+2+1 Power Supply Module
GTR7 adopts a magnetic chuck, which connects the PC tightly to the power adaptor.
0.5S Fingerprint scanner
As is typical of the GT series, the GTR7 features a convenient square fingerprint scanner module for rapid system unlocking.
Dual SO-DIMM DDR5
GTR7 features two built-in slots for DDR5-5600MHz RAM, which can support up to 64GB of dual-channel memory. The system comes pre-installed with 32 GB of RAM as 2x16GB modules. The device also comes with a pre-installed M.2 2280 NVMe SSD with a capacity of 1TB in PCIe 4.0x4 format. Furthermore, users have the option of adding an extra M.2 2280 NVMe SSD, MAX up to 4 TB.
MSC Technology-Vapor Chamber and System Fan
Functional features
CPU: AMD Ryzen™ 7 7840HS Processor, 8 Cores/16 Threads, 5.1GHz
Graphics: AMD Radeon 780M (Frequency 2700MHz)
Storage: M.2 2280 PCIe 4.0 SSD ×2
Memory: Dual DDR5 Channel (SODIMM Slots×2, Up to 5600MHz, Max 64GB)
Wireless Network: WiFi 6, BlueTooth 5.2
Power: Magnetic Power Supply (With 19V adapter)
Interface: USB4 ×2, DP 1.4 ×1, HDMI 2.1 ×1, LAN 2.5G ×2, Type-C ×1, Audio Jack ×2, USB 3.2 ×3, USB 2.0 ×2, DC IN ×1

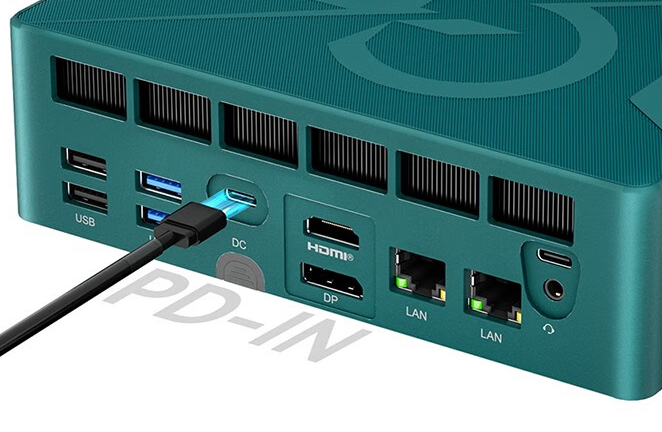

If you want to use a USB4 port(PD3.0 100W) for power supply, please set the TDP to 54W in your BIOS settings and use a PD charger that supports 20V voltage and a maximum OCP of 6.32A.
Please connect 120W power adapter to DC port for power supply if you set the TDP to 65W.
