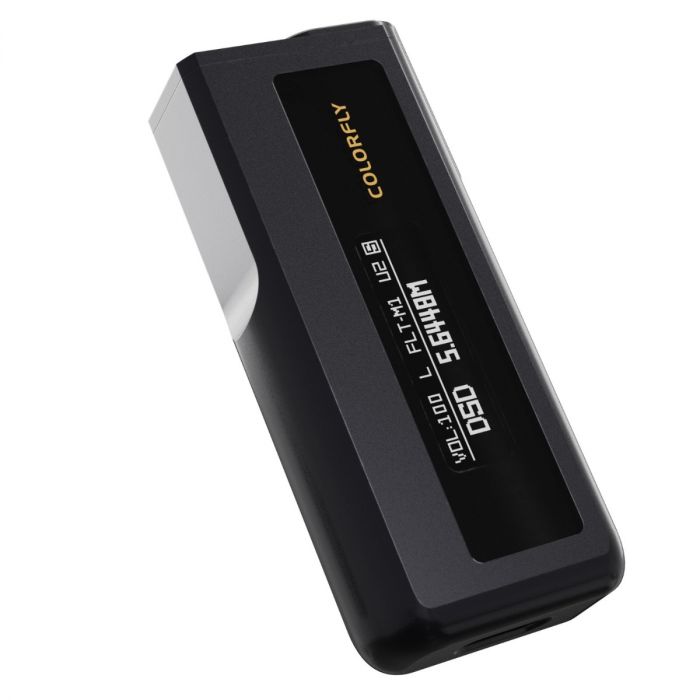

Colorfly CDA M2 Grey
Colorfly CDA M2 Amplifier is with CS43198 Dual DAC Chipset, and supports high-resolution USB DAC with decoding up to 32-bit/768kHz PCM and Native DSD512 Decoding.
Features:
OLED Display
Colorfly CDA M2 has OLED Display with 128*64 piexls.
CS43198 Dual DAC Chipset
Colorfly CDA M2 houses upgraded ES9219MQ Dual DAC Chipset from Cirrus Logics, better performance. The DAc delivers impressive performance with ultra-low distortion and high SNR performance while decoding high-res audio signals.
Compatible with
- Mac OS, iPad OS, iOS devices,
- Android devices,
- Windows system devices.
32/768kHz PCM
Colorfly CDA M2 supports high-resolution USB DAC with decoding up to 32/768kHz PCM and Native DSD512 Decoding.
3.5mm and 4.4mm Output Ports
Colorfly CDA M2 features dual headphone output ports with independent XR2001 Operational Amplification chips. Each chip here independently powers the 3.5mm and 4.4mm output ports and provides the users with a strong and dynamic audio listening experience.
UAC1.0 Mode
Colorfly CDA M2 is compatible with different gaming consoles including Nintendo Switch and PS5 as it supports UAC1.0 operating mode.
Five Digital Filters
Enjoy a diverse sound experience with the Colorfly CDA M2. The portable USB DAC features five digital filter options that enable the users to customize the output to their liking. This includes Fast LL, Fast PC, Slow LL, Slow PC, and Non OS(Non Oversampling Filter).
Package
CDA-M2*1
Type-C Data Cable*1
Technical Parameters
| Dimension | 58*25*13.5mm |
| Weight | ~27g |
| USB interface | Type C |
| Screen | 128*64 OLED |
| Signal-to-Noise Ratio | 130dB |
| Frequency Response | 20Hz~20kHz |
| Dynamic Range | 130dB |
| Decoding Formats | PCM 32Bit / 768kHz DSD 256 /Native DSD 256 / Dop |
| THD+N | -114dB@RL=600Ω，0dB/Balanced -106dB@RL=32Ω，100mW/Balanced -112dB@RL=600Ω，0dB/Unbalanced -108dB@RL=32Ω，100mW/Unbalanced |
| Headphone Jack | 3.5mm Unbalanced / 4.4mm Balanced |
| Output Level | 2Vrms @RL=600Ω Unbalanced Output 4Vrms @RL=600Ω Balanced Output |
| Maximum Output Power | 125mW@RL=32Ω Unbalanced Output 250mW@RL=32Ω Balanced Output |
| Firmware Upgrade | Support for future upgrades |
