ICY DOCK Express Slot MB204MP-B
ICY DOCK Express Slot MB204MP-B, 4 Bay M.2 NVMe SSD to PCIe 5.0 x16 Adapter Card with Removable Drive Trays, for PCIe Expansion Slot.
Features:

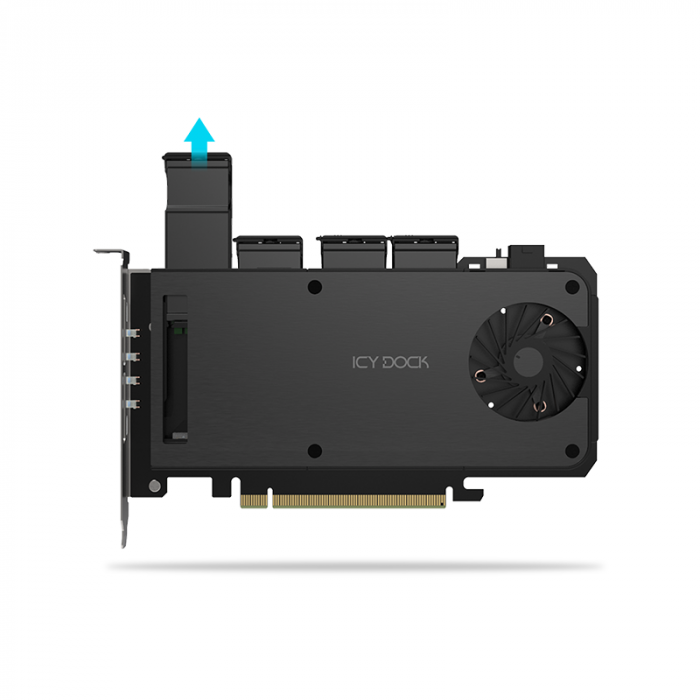

Innovative Tool-less M.2 SSD Tray Design:
The MB204MP-B is equipped with removable drive trays that allow tool-less drive removal and installation. It supports 4x M.2 NVMe SSD & Tool-less SSD Installation.
Simply unlock the quick-release knob to release the drive tray and access the M.2 NVMe SSDs without dealing with any tools or screws. Each M.2 slot is compatible with various M.2 drive lengths from 30mm to 80mm (2230 / 2242 / 2260 / 2280).
High Efficient Cooling Mechanism:
Each removable drive tray features an aluminum heatsink lid that efficiently dissipates heat generated by the SSDs. The unit is equipped with a 50mm blower fan to enhance cooling further.
Superior PCIe 5.0 Performance:
The PCIe 5.0 interface provides power and data through a single PCIe slot, reducing the system’s cable clutter. In addition, the blazing-fast 128Gbps transfer speed is significantly faster than SATA III, making it an ideal solution for data-intensive applications such as machine learning, cloud computing, data mining, or even image processing.
Individual Drive Status Indicators:
The MB204MP-B is equipped with LED indicators on the PCIe faceplate to show the status of drive power and activity. The LEDs will automatically power off when no drive is detected to save energy.
Compatible with:
The MB204MP-B is compatible with Intel® VROC (Virtual RAID-on-CPU) function and AMD PCIe 5.0 NVMe RAID.
Specifications:
| Model Number : | MB204MP-B |
| Color : | Black |
| Support Drive Size : | M / B + M key M.2 PCIe NVMe SSD 2230/2242/2260/2280 |
| Compatible Drive Type : | M.2 PCIe 3.0/4.0/5.0 NVMe SSD |
| Number of Drives : | 4 |
| Drive Bay : | 1 x PCIe 5.0 or 4.0 x16 expansion slot (motherboard required PCIe x16 slots bifurcated into x4/x4/x4/x4) |
| Host Interface : | PCIe 5.0 x16 |
| Power Input : | 1 x PCIe golden finger 1 x PCIe 6 pin power connector |
| Transfer Rate : | PCIe 5.0 x4 up to 128Gbps per SSD |
| Support SSD Capacity : | No limitation |
| Drive Cooling : | 1 x 50 x 50 x 15mm fan |
| Structure / Material : | Metal IO bracket/cover with PCBA and plastic shield |
| Hot Plug : | Yes |
| Product Dimension (W x H x D) : | 126.9 x 21.59 x 204.5 mm |
| Product Net Weight : | 229g |
| Package Gross Weight : | 370g |
| Drive Activity LED Indication : | Device power: solid green Device activity: flashing green Empty: LED off |
| Package Contents : | Device, user manual, thermal pads, M.2 SSD mounting clips, screws |
| Connector Insertion Rate : | 5,000 |
| Humidity : | 5%~65% RH |
| Operating Temperature : | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature : | -35°C to 70°C (-31°F to 158°F) |
| Compliance : | CE, RoHS, REACH |
| Warranty : | 3 years |
