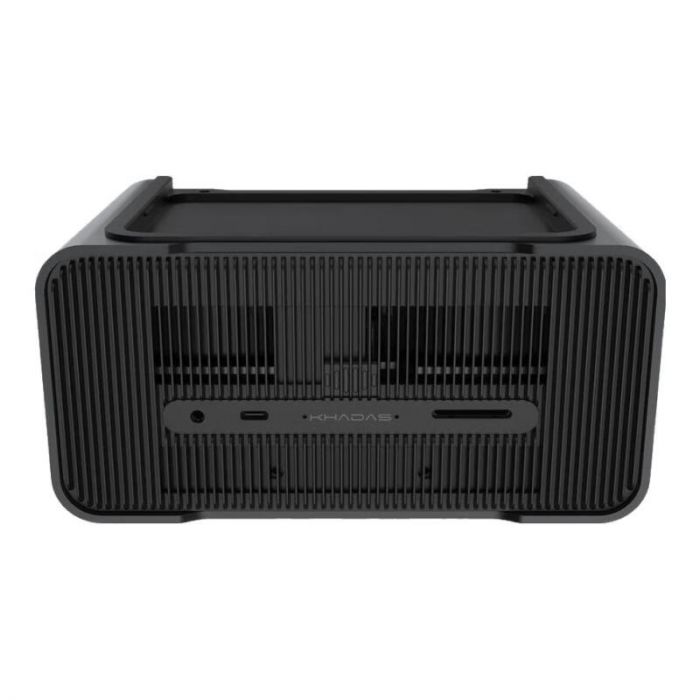

Khadas Mind Graphics RTX 4060 Ti Dock
NVIDIA GeForce RTX 4060 Ti Desktop Graphics, 8GB GDDR6, USB4, Thunderbolt 4, ThunderBolt 3
- Mind Link Max Speed: 128 GT/s
-
Supports Thunderbolt 4/3 connection with laptops and desktops
-
Built-in dual speaker system for immersive audio experience
MAIN FEATURES
Turbocharge Your Mind:
Mind Link Max Speed: 128 GT/s. Unleash your GPU with double the bandwidth.
The Mind Link interface supports up to 8-lane PCIe 5.0 bandwidth, offering a lightning-fast transfer speed of 128 GT/s for Mind Graphics — four times the speed of Thunderbolt 4.
Exquisitely Designed:
Khadas Mind Graphics use CNC unibody machining techniques and finished with an anodized oxidation process. Durable, minimalist, and elegant — continuing the distinctive design language of Khadas.
Boost Your Creativity:
NVIDIA® GeForce RTX™ 4060 Ti Desktop GPU. The advanced Ada Lovelace architecture enables Mind Graphics to multiply performance and simultaneously improve power efficiency.
Support Multi-devices:
- Supports Thunderbolt 4/3 connection.
- Compatible with laptops and desktops.
- Enjoy accelerated graphics & Recharge your device.
The USB-C interface of Mind Graphics is compatible with Thunderbolt 4, Thunderbolt 3, USB4, and has USB-PD charging. Connect your laptop or desktop computer to Mind Graphics, and merge with the power of the RTX 4060 Ti graphics card.
Khadas Mind Graphics also recharges your laptop with up to 85W of power at the same time.
Desktop Audio:
Mind Graphics is with built-in dual speaker system for immersive audio experience.
Ultra-HD Visuals:
Khadas Mind Graphics delivers lifelike ultra-HD visuals up to 8K resolution at a 60Hz refresh rate with the flexibility to connect to up to 4 external displays.
Effortless Peripheral Expansion:
Khadas Mind Graphics delivers with USB-C, USB-A 3.2, HDMI, DisplayPort, 2.5Gbps ethernet, SD 4.0 card reader and a 3.5 mm headphone jack.
Fingerprint Reader:
Millisecond fingerprint registration and login. Physical volume rocker.
Log into your Windows OS with just a touch, and quickly adjust the volume in busy situations.
Key Features:
Mind Link Max Speed: 128 GT/s
NVIDIA GeForce RTX 4060 Ti Desktop GPU (8GB GDDR6)
Supports Thunderbolt 4/3 connection with laptops and desktops
CNC unibody aluminum enclosure
Built-in dual speaker system for immersive audio experience
Connections & Expansion:
1× USB-C Support USB4/ThunderBolt4/ThunderBolt3
3× USB-A 3.2 Gen 2 (10Gbps)
2× HDMI 2.1a (Supports 4K/240Hz or 8K/60Hz)
1× DisplayPort 1.4a (Supports 4K/240Hz or 8K/60Hz)
1× Ethernet (2.5Gbps)
1× SD Card 4.0（200MB/s）
1× Mind Link
1× Headphone Jack 3.5mm with Mic supported
1× Speaker
1× Far-field Microphone Array
In The Box:
1× Khadas Mind Graphics
1× AC Power Cable
1× Manual
1× Warranty Card
