Orange Pi AIpro
Orange Pi AIpro Demon Board, 8GB/12GB/24GB LPDDR4X, powerful enough to be widely used in AI teaching and training, AI algorithm verification, intelligent carts, robotic arms, edge computing, drones, artificial intelligence, cloud computing, AR/VR, intelligent security, smart home, intelligent transportation, and other fields.
Key Features:
8-20 TOPS AI Computing Power: OrangePi AIpro is powered by a 4-core 64-bit processor + AI processor with integrated graphics, supports 8-20TOPS of AI computing power, has 8GB/12GB/24GB LPDDR4X, can be externally connected to 32GB/64GB/256GB eMMC modules, and supports dual 4K HD outputs.
M.2 2280 SATA/NVMe SSD: The onboard M.2 interface supports access to SATA/NVMe SSD 2280 hard disk to increase massive data storage space and meet the needs of fast read/write and high-capacity storage.
2.5G high-speed Dual Ethernet Ports: 2.5G Ethernet ports with 2 PCIe extensions for faster data transfer speeds.
Multi-channel Output: Supports dual HDMI video output, 4K HD output, one MIPI DSI video output, and two MIPI interface camera input.

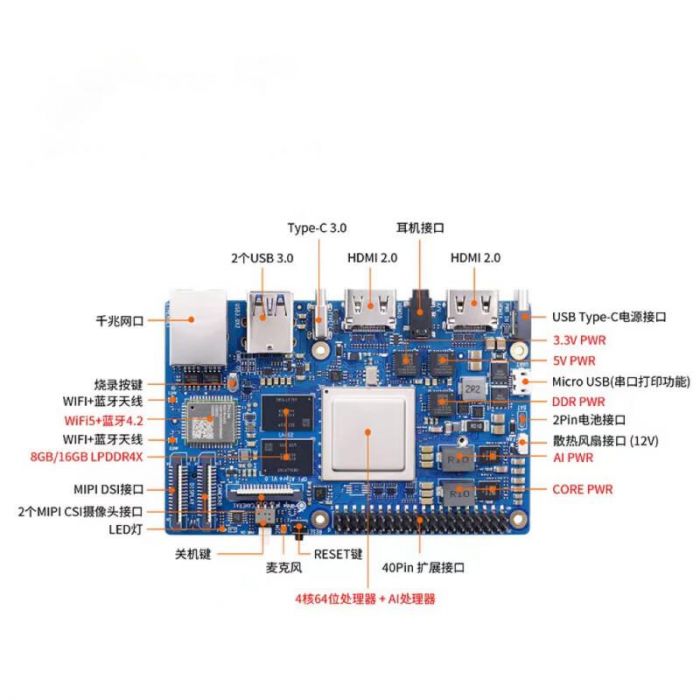

Abundant Interfaces: MIPI DSI, dual MIPI CSI, USB3.0, Type-C, dual HDMI2.0, dual 2.5G Ethernet, M.2 slot supporting SATA/NVMe SSD 2280, and so on.
Powerful Wireless Communication: Onboard Wi-Fi 6E+BT 5.3/BLE module.
Wide Range of Application Scenarios: Can be widely used in AI teaching and training, AI algorithm verification, intelligent carts, robotic arms, edge computing, drones, artificial intelligence, cloud computing, AR/VR, intelligent security, smart home, intelligent transportation, and other fields.
Pricing and Availability: The Orange Pi AIpro is priced competitively and available for immediate purchase. Don't wait to enhance your gaming and computing experience.
Specifications:
| CPU | 4-core 64-bit processor + AI processor 1 DaVinciV300 AI core at 1.224GHz 4 TAISHANV200M processor cores at 1.6GHz |
| GPU | Integrated graphics processor |
| AI computing power | 8-20 TOPS |
| RAM | LPDDR4X: 8GB/12GB/24GB (optional), rate: 4266Mbps |
| Storage | Supports eMMC module: 32GB/64GB/256GB SATA/NVME SSD (M.2 interface 2280) SPI flash: 32MB MicroSD slot |
| USB | 3 * USB 3.0 HOST 1 * USB Type-C 3.0 HOST/Device (USB 2.0 compatible) 1 * Type-C serial port printing function |
| Display | 2 * HDMI TX 2.0 outputs, support up to 4K@60FPS 1 * MIPI DSI 4-lane output |
| Camera | 2 * MIPI CSI 4-lane camera interface |
| Audio | 3.5mm headphone jack audio in/out |
| Ethernet | 1*PCIe 2.5G LAN（RTL8125BG ) |
| Wi-Fi+BT Module | Wi-Fi 5 dual-band + BT 4.2, BLE |
| Expansion Port | Dual 2.5G Ethernet |
| Button | 1*On key, 1*RESET key, 1*Start toggle key, 1*BOOT key |
| 40pin | 40pin function expansion interface, supporting the following interface types: GPIO, UART, I2C, SPI, I2S, PWM |
| FAN | Fan connector * 1 |
| Reserved ports | 2pin battery connector |
| Power supply | Type-C PD 20V IN, standard 65W |
| Supported OS | Ubuntu、openEuler |
| Package Include | 1pcs* SingleBoard |
| Product size | 115.23mm*83.26mm*1.6mm |
| Weight | 120.5g |
