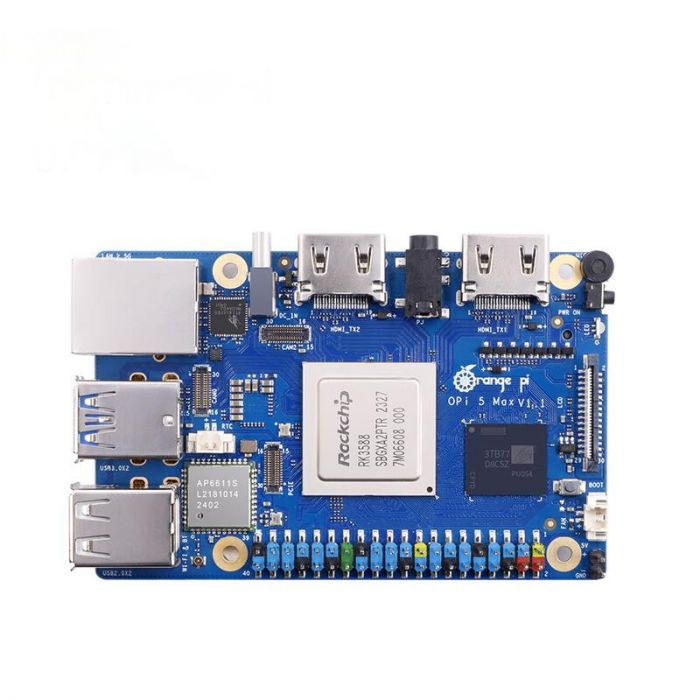

OrangePi 5 MAX
OrangePi 5 MAX is compact PCB, powerful enough to be widely used in high-end tablets, edge computing, artificial intelligence, VR/AR, smart security, smart home, etc.
Key Features:
Performance: OrangePi 5 Max is powered by Rockchip RK3588 8-core 64-bit processor with 4 Cortex-A76 (2.4GHz), 4 Cortex-A55 (1.8GHz) and independent NEON coprocessor.
Artificial Intelligence NPU: Embedded 6TOPS arithmetic NPU, supporting INT4/INT8/INT16 hybrid computing, suitable for developing AI applications.
DDR5 Memory: Equipped with 4GB/8GB/16GB LPDDR5. LPDDR 5 brings higher data rate and lower power consumption, which better meets the needs of large applications and complex 3D games.
Enriched Display Ports: Dual HDMI 2.1, supports up to 8K@60FPS + 4-Lane MIPI DSI for high-end applications such as VR cameras and deep vision.
3 Camera Ports: Dual 4-Lane MIPI CSI + MIPI D-PHY
Powerful Wireless Communication: Onboard Wi-Fi 6E+BT 5.3/BLE module.
8K Video Decoding: 8-core CPU + 8nm process + 8K video decoding, combining clear picture quality and smooth experience.
Abundant interfaces: HDMI output, GPIO interface, USB2.0, USB3.0, 3.5mm headphone socket, one PCIe extended 2.5G high-speed network port, one M.2 M-Key slot (PCIe 3.0 4-Lane), supporting for the installation of NVMe SSDs or SATA SSDs.
Pricing and Availability: The OrangePi 5 MAX Motherboard is priced competitively and available for immediate purchase. Don't wait to enhance your gaming and computing experience.
Specifications:
| Size | 89 * 57 * 1.6mm layout |
| Chip | Rockchip RK3588 (8nm LP process) |
| CPU | 8-core 64-bit processor 4 Cortex-A76 and 4 Cortex-A55 with independent NEON coprocessor Cortex-A76 at 2.4GHz, Cortex-A55 at 1.8GHz |
| GPU | Integrated ARM Mali-G610 Built-in 3D GPU Fully compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2. |
| NPU | Embedded NPU supports INT4/INT8/INT16/FP16 hybrid computing with up to 6TOPS. |
| PMU | RK806-1 |
| RAM | LPDDR5 496PIN: 4GB, 8GB,16GB optional |
| Memory | eMMC Flash Sockets（default） Onboard eMMC（customizable） Note: Either eMMC socket or on-board eMMC, support: 32GB, 64GB, 128GB, 256GB optional QSPI Nor FLASH: 16MB MicroSD card slot M.2 M-KEY slot: Support NVMe SSD (PCIe 3.0 4Lane) |
| USB | 2*USB3.0；2*USB2.0 |
| Video | 2* HDMI 2.1, up to 8k@60FPS 1* MIPI DSI TX 4 Lane |
| Camera | 2* MIPI CSI 4 Lane 1* MIPI D-PHY RX 4 Lane |
| Audio | CODEC：ES8388 1* Audio 3.5mm jack with mic 1*MIC In 1*HDMI 2.1 eARC |
| Ethernet | 1*PCIe 2.5G LAN（RTL8125BG ) |
| Wi-Fi+BT Module | Onboard Wi-Fi 6E+BT 5.3/BLE module: AP6611 Wi-Fi interface: SDIO3.0 BT interface: UART/PCM |
| Expansion Port | Dual-row pin: 2.54mm 40Pin Supports DC 5V and 3.3V power output Configurable UART, PWM, I2C, SPI, CAN, GPIO and other functional interfaces |
| Power Source | Supports Type-C power supply, 5V @ 5A |
| LED | RGB LED Side Illumination |
| FAN | 5V 2PIN 1.25mm socket |
| RTC | 3V 2PIN 1.25mm socket |
| Debugging | Debug serial UART included in 40PIN expansion port |
| Supported OS | Orangepi OS (Droid), Orangepi OS (Arch), Orangepi OS(OH), Ubuntu, Debian, Android 12 operating system. |
