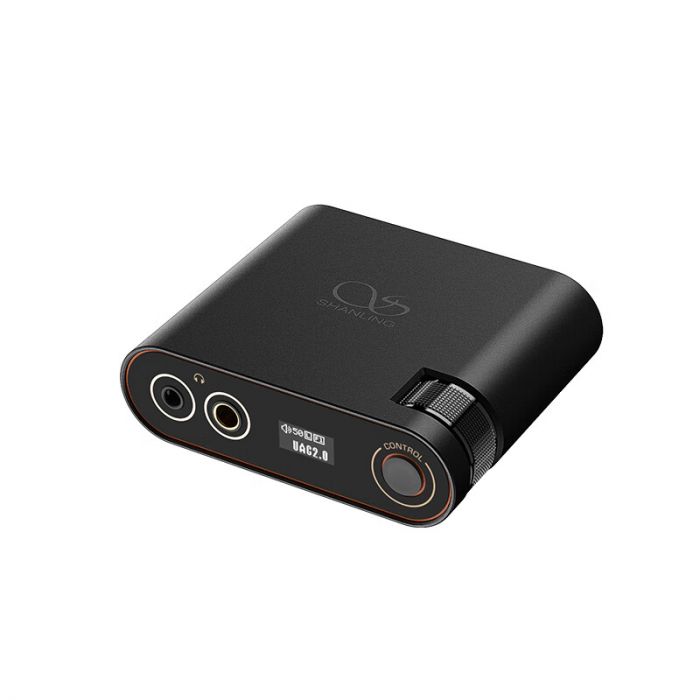

SHANLING H0 USB DAC
SHANLING H0 is a high-performance USB DAC and Amplifier is with built-in music, equipped with CS43198 DAC chip which are capable of high performance and accurately reproducing high-resolution audio.
Features:
CS43198 DAC:
SHANLING H0 is equipped with Cirrus Logic CS43198 DAC, capable of high performance and accurately reproducing high-resolution audio.
High-end Decoding
SHANLING H0 is equipped with the 3rd Gen 16core Xmos XU316 USB input, supports up to 32bit/768kHz PCM and DSD256, you will be able to hear even the finest details within your music!
Dual SG-Micro SGM8262 Amplifiers
Utilizing two SG-Micro 8262-2 op-amps for the balanced headphone output, rich and warm for the most pleasing enjoyment.
Hi-Fi Grade USB Input
- Third generation XMOS XU316 Stable Asynchronous Connection.
- With a new generation of the highly-acclaimed USB chipset, assuring the top-quality digital input for H0. The 16-core audio solution provides anasynchronous connection for high-fidelity soundand full support for Hi-Res playback of PCM, DSD and MQA files.
- Native: DSD256
- PCM: MOA Full Decoder.
- Awarded "Hi-Res Audio" certifications from Japan Audio Society.
Connection
Shanling H0 is equipped with a USB digital interface, which supports the output of coaxial/optical signals as a USB digital interface, and supports UAC1.0 drive-free mode, which has a very rich use scenario as following:
- PC
- Laptop/Tablets
- PS5/Switch/Smartphones, with UAC1.0 mode available for compatibility with PS5 and Nintendo Switch.
Simple Interface Three Gain Levels
Packing standard 3.5mm single-ended and balanced 4.4mm headphone outputs, for easy compatibility. Offering three levels of amplifier gain, assuring an ideal match with a wide range of headphones.
- 3.5 mm Single-Ended, 175mW@32Ω.
- 4.4 mm Balanced, 690mW@32Ω.
----------------------------
Specifications:
| DAC | Cirrus Logic CS43198 DAC |
| THD+N | 115dB |
| Headphone output ports | 3.5 mm Single-Ended, 4.4mm balanced output |
| Audio input interface | Type-C Cable |
| Support DSD | 256 |
| 3.5mm Single-Ended Headphone Output: | Low Gain: 1.2V@32Ω (45mW@32Ω) High Gain: 2.37V@32Ω (175mW@32Ω) Frequency Response: 20Hz-40kHz (-0.5dB) THD+N: 0.0004%@32Ω(A-Weight@1V Low Gain) Dynamic Range: 125dB@32Ω (A-Weight High Gain) Channel separation: 80dB@32Ω Signal-to-noise ratio: 126dB @32Ω (A-Weight High Gain) Noise: 118dB (Low Gain) |
| 4.4mm Output | Low Gain: 2.6V@32 Ω (211mW@32Ω) High Gain: 4.7V@32Ω (690mW@32 Ω) Frequency Response: 20Hz-40kHz (-0.5dB) THD+N: 0.0006%@32Ω(A-Weight@4V High Gain) Dynamic Range: 127dB@32 Ω (A-Weight High Gain) Channel separation: 109dB@32 Ω Signal-to-noise ratio: 128dB@32 Ω (A-Weight High Gain) Noise: 115dB (Low Gain) |
| 3.5mm Line-out Output | Low Gain: 1.2V@32 Ω High Gain: 2.37V@32Ω Frequency Response: 20Hz-40kHz (-0.5dB) THD+N: 0.0003%@32Ω(A-Weight@2V Low Gain) Dynamic Range: 125dB@32 Ω (A-Weight High Gain) Channel separation: 117dB@32 Ω Signal-to-noise ratio: 128dB @32Ω (A-Weight High Gain) Noise: 117dB (Low Gain) |
| Accessories |
1X USB-A to USB-C Cable |
