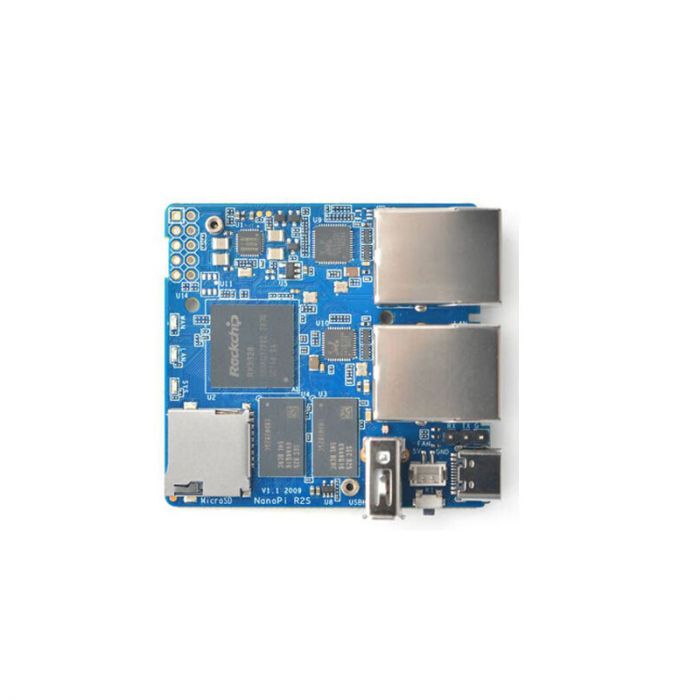

Youyeetoo NanoPi R2S Mini Router
Youyeetoo NanoPi R2S Mini Router.
Rockchip RK3328 | Support OpenWrt Linux | With CNC Metal Case | Dual Gigabit Port | 1GB DDR4 RAM
MAIN FEATURES
Dual Gbps Ethernet Ports:
The Youyeetoo NanoPi R2S has two Gbps Ethernet ports, one directly extended from the SoC and the other converted from a USB3.0. For the NanoPi R2S, the internal Gbps Ethernet has a TX rate of 941 Mbps and a RX rate of 941 Mbps, the UsB converted Gbps Ethernet has a TX rate of 941 Mbps and a RX rate of 941 Mbps.
RK3328 SoC:
The Youyeetoo NanoPi R2S uses the RK3328 SoC, has two Gbps Ethernet ports and 1G DDR4 RAM. FriendlyElec ported an OpenWrt system for it. It works with Docker CE. It is a good platform for developing IoT applications, NAS applications, smart home gate ways, etc.
Specification
Product Category: Router
Model: Youyeetoo NanoPi R2S Mini Router
CPU: Rockchip RK3328, Quad-core Cortex-A53
Memory: 1GB DDR4
Network protocols: Internal 10/100/1000M Ethernet Port x 1, USB3.0 converted 10/100/1000M Ethernet Port x 1
USB2.0 Host: Type-A x1
MicroSD Slot x 1
Micro USB: power input and USB Slave
Debug Serial Port: 3.3V TTL, 3-pin 2.54mm pitch connector
LED: LED x 3
KEY: KEY x 1 programmable
PC Size: 55.6 x 52mm
Power Supply: DC 5V/2A
Temperature measuring range: 0℃ to 80℃
OS/Software: U-boot,Ubuntu-Core,OpenWrt
Kit Packing list:
x1 Youyeetoo NanoPi R2S Mini Router
x1 Charger
x1 USB- Cable
